Acetic anhydride (CH₃CO)₂O) is a vital industrial chemical used as a highly efficient acetylating agent in multiple sectors. Its primary applications range from the production of cellulose acetate for films and textiles to pharmaceuticals, including aspirin and paracetamol. Additionally, it serves as a chemical intermediate in the synthesis of herbicides, dyes, perfumes, and other specialty chemicals.

The production of acetic anhydride requires meticulous control of chemical reactions, careful design of industrial equipment, and selection of corrosion-resistant materials due to the aggressive nature of the chemicals involved.

Production Process

1. Chemical Reaction

The most common industrial route is the carbonylation of methyl acetate, typically catalyzed by a rhodium- or iridium-based system. The overall reaction is:

CH₃COOCH₃ + CO → (CH₃CO)₂O\text{CH₃COOCH₃ + CO → (CH₃CO)₂O}CH₃COOCH₃ + CO → (CH₃CO)₂O

Operational details:

Catalyst: Rhodium iodide complex
Promoter: Lithium iodide
Solvent: Methyl acetate often serves as both reactant and solvent
Temperature: 150–200 °C
Pressure: 30–60 bar

This reaction takes place in a high-pressure autoclave reactor constructed from stainless steel 316L or nickel-based alloys to withstand corrosion from iodides and acetic anhydride.

2. Reactor Design

Type: Continuous stirred-tank reactor (CSTR) or loop reactor
Volume: 50–200 m³ for large-scale plants
Agitation: High-shear impellers ensure uniform mixing of gases and liquids
Material: Stainless steel or nickel alloys for long-term durability
Temperature control: Jacketed or internal coil heat exchangers maintain precise reaction conditions

The reactor design focuses on maximizing conversion efficiency while minimizing by-product formation, ensuring the process remains cost-effective and environmentally safe.

3. Separation and Purification

After the reaction, the mixture contains acetic anhydride, unreacted methyl acetate, and trace by-products. Purification involves several steps:

Distillation Columns:
- Tower height: 15–30 m
- Diameter: 1–4 m
- Trays or packing: Teflon-lined for corrosion resistance
- Operating pressure: Atmospheric or slightly reduced for effective separation
Solvent Recovery: Unreacted methyl acetate is condensed and recycled back to the reactor, improving efficiency and reducing raw material costs.
Final Product Storage: Acetic anhydride is stored in lined carbon steel or stainless-steel tanks, ensuring chemical stability and safety during transport and handling.

4. Safety and Operational Considerations

Exothermic Reaction: Continuous temperature monitoring prevents runaway reactions.
Corrosive Chemicals: Material selection is critical for long-term plant integrity.
Pressure Management: All reactors and distillation units are designed for 1.5–2× operating pressures, with relief valves for emergency situations.

Applications of Acetic Anhydride

Acetic anhydride has a wide array of industrial uses:

Pharmaceuticals: Production of aspirin, paracetamol, and other acetylated drugs.
Cellulose Acetate: Used in films, textiles, and plastics.
Chemical Intermediates: Acetylation of alcohols, amines, and other organics.
Pesticides and Herbicides: Intermediate in agrochemical synthesis.
Specialty Chemicals: Production of fragrances, flavorings, and dyes.

Its versatility as an acetylating agent makes it indispensable across chemical industries.

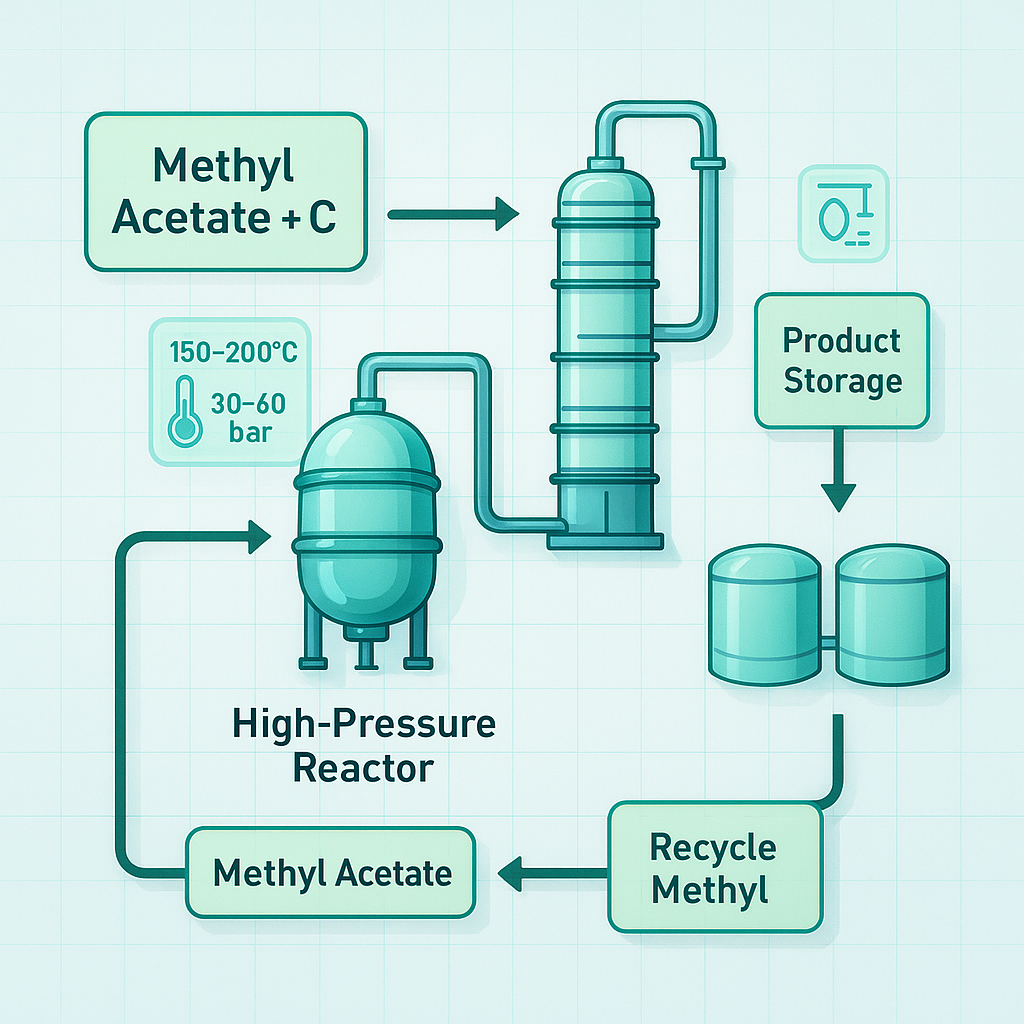

Acetic Anhydride Production Flow

Methyl Acetate + CO

→

High-Pressure Reactor
(CSTR / Loop)

→

Separation / Distillation
(15–30 m towers)

→

Product Storage
(Lined Tanks)

Recycle Methyl Acetate

↺

Back to Reactor

Conclusion: Leveraging Chemcopilot for a Digital Twin of Acetic Anhydride Production

The production of acetic anhydride involves complex chemical reactions, high-pressure reactors, corrosive environments, and precise separation processes. Each stage—from carbonylation of methyl acetate to distillation and solvent recycling—requires careful monitoring of temperature, pressure, and material compatibility to ensure safety, efficiency, and product purity.

By implementing this process as a digital twin on Chemcopilot, chemical engineers can:

Simulate and optimize reaction conditions virtually before scaling up, reducing trial-and-error costs.
Monitor real-time plant data to predict deviations in temperature, pressure, or conversion rates.
Integrate equipment parameters and materials data, allowing proactive maintenance of reactors, distillation columns, and storage tanks.
Enhance sustainability, by calculating CO₂ footprints of raw materials, energy usage, and process emissions, enabling better environmental decisions.
Streamline training and knowledge transfer, as the digital twin represents both process knowledge and operational protocols in a single interactive environment.

In short, Chemcopilot transforms a traditional chemical production line into a fully connected digital ecosystem, allowing engineers to explore “what-if” scenarios, optimize efficiency, and maintain compliance—all while minimizing risk and maximizing the overall productivity of acetic anhydride production.
